s-RP nano

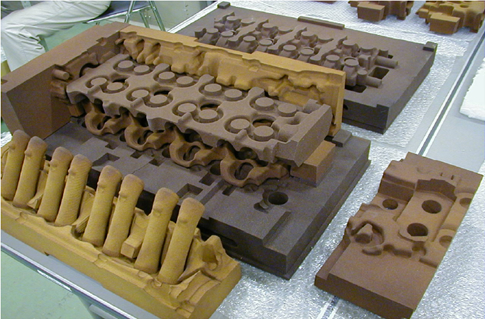

Sphere for rapid prototyping system with nano technology for Selective Sintering provides direct casting by high accuracy mold like core and main mold, without wooden nor metal mold.
![](img/pro13/pro13_img01.jpg)

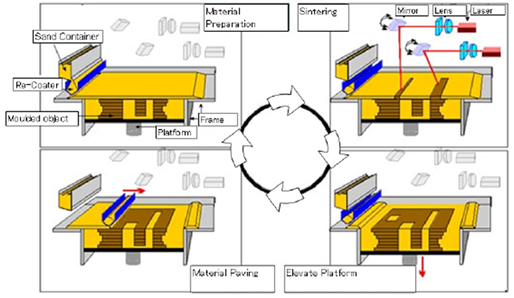

Image of process
Paving ”s-RP nano sand “ with the thickness of 0.1~0.2mm, on platform. A part of s-RP nano is cured by the Scanning laser ray.
These cycle is continued ply by ply, then you can get targeted mold directly from data by CAD. s-RP nano provides excellent performance for “high-mix low volume production.”

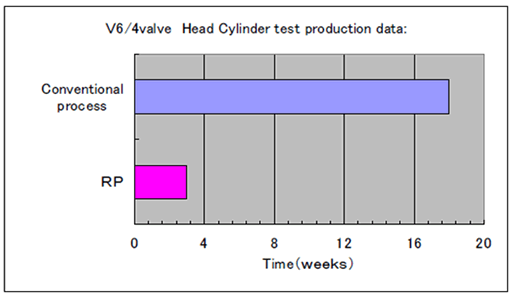

Time of process
![Consult Details](img/btn_detail.gif)

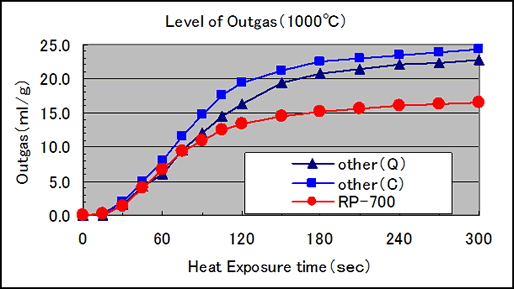

Lower out-gas against conventional process
![](img/pro13/pro13_img04.gif)
Out-gas of RP-700 is less than other materials like quartz and ceramics.
Out-gas level is similar to Shell mold process.
Surface even property and Modeling accuracy
Material | Ra | Model accuracy |
---|---|---|
RP-700 | 10 | ±0.1mm |
Other | 30 | ±0.5mm |
Reference
Non-Bake | 8 | ±0.1mm |
---|
Product list of s-RP nano
Item | AFS | Features |
---|---|---|
RP-4 | 95-110 | Low out-gas |
RP-700 | 130-150 | Low out-gas, even surface |
Please contact us to discuss the details, once you have something special requirements. We can modify as much as you need.
